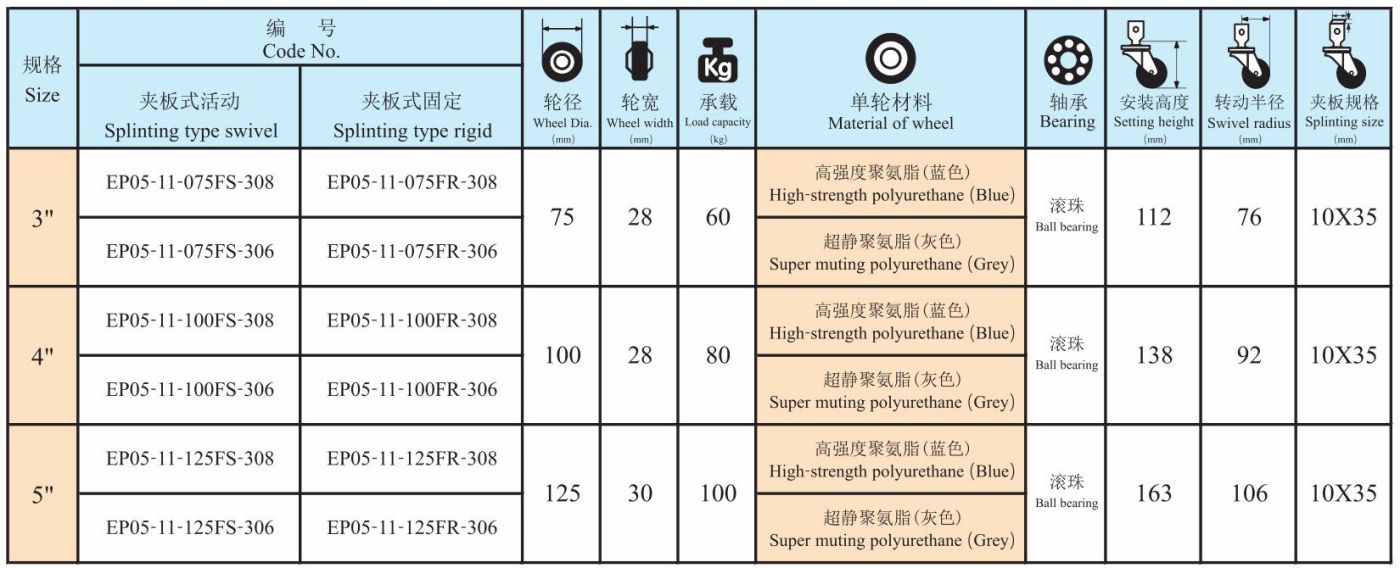

Supermarket Shopping Trolley Cart Travelator/Flat Caster Wheel EP 5 Series Splinting type Swivel Rigid polyrethane caster

Industrial casters are widely used in trolleys, mobile scaffolds, workshop trucks, etc. In the process of ensuring normal movement, in addition to their own structure and bearing capacity, the speed of industrial casters is also certain. Require. Below, Globe Caster will give you a brief introduction.

When using casters, we hope to pre-consider its usage, required functions, and usage conditions (usage range), and then select the appropriate type. Pay attention to the following items: First of all, the appropriate load-bearing load. The possible load-bearing load in the product description refers to the general load-bearing that is easy to move when transported on a flat ground by manual operation. At the same time, it is a general load-bearing that can be carried out for a long time in a safe state. For sexual load, you need to estimate the total weight of the object in advance, and then select the appropriate caster according to the allowable load. Usually, only 3 of the 4 casters are subjected to force. When casters of different sizes are used in combination, please use the caster with the lowest load-bearing load as the basis to calculate the overall maximum load-bearing weight.

Regarding the speed, the requirements for the speed of the casters are: in a normal temperature environment, at no higher than the walking speed, on a flat ground, there is a general use situation in a stopped working state. Caster wheels with a diameter of less than 75mm and less than 2km/h, and less than 100mm and less than 4km/h. According to the specific equipment for installing the casters, determine the diameter of the caster, its material, the installation method (such as plate-mounted, and screw-fixed, etc.) and the type of caster used (such as flexible rotation, fixed, stop Type, etc.). In short, the most suitable industrial caster should be selected after fully weighing the existing caster varieties or various types of options.

Globe Caster recommends that users combine their own actual conditions and compare multiple ones. Before you buy casters, you need to understand some knowledge of casters, so that they can play the role of casters.
