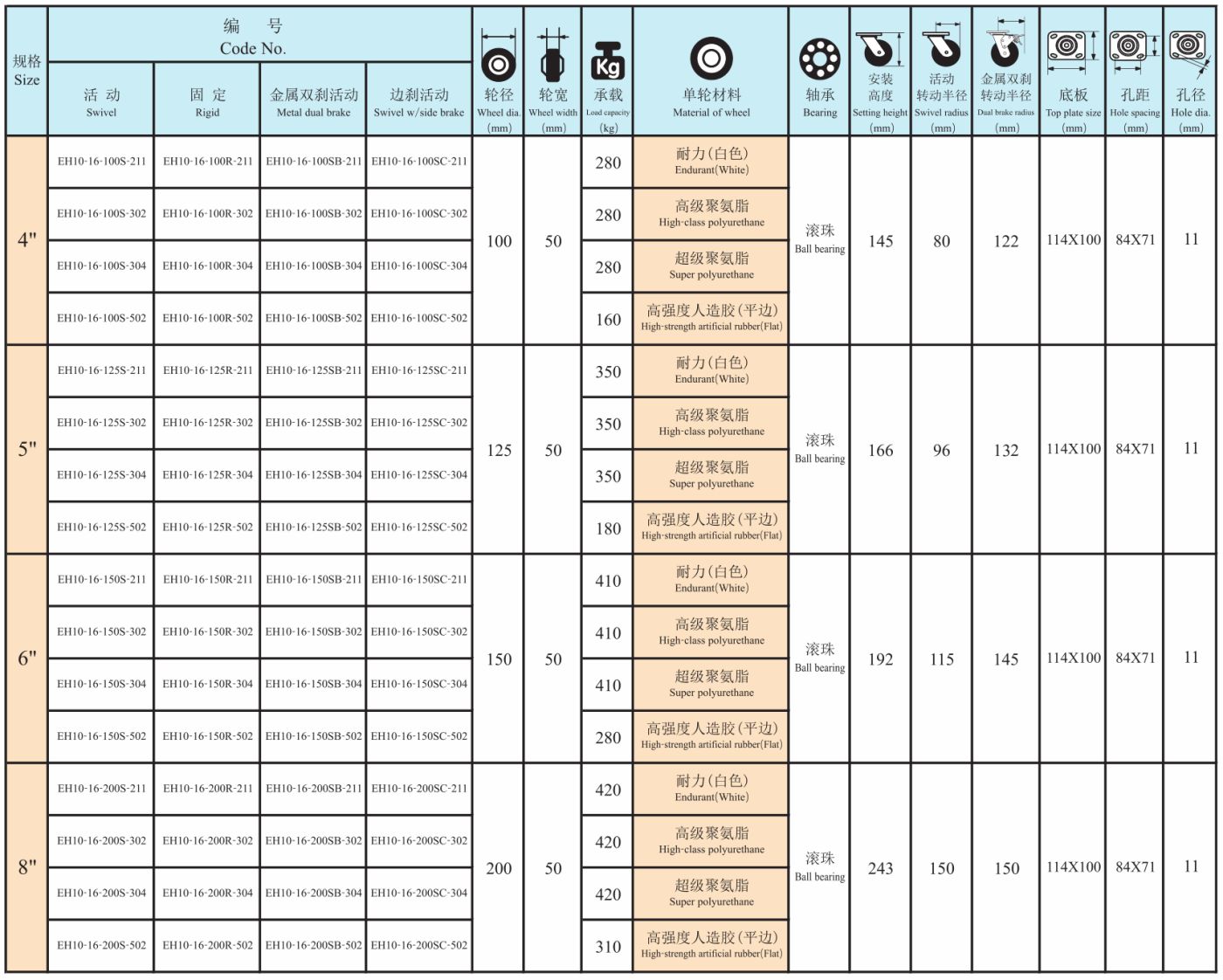

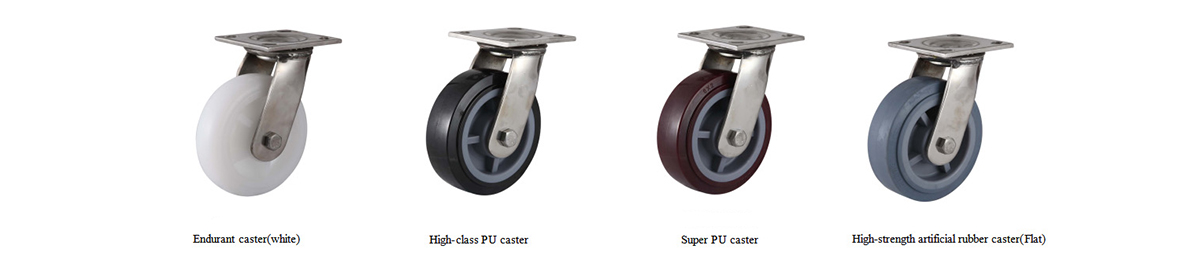

Stainless Steel Heay Duty Industrial Top plate-Swivel/Rigid/ Dual Brake Endurant Caster

Heavy-duty wheels and casters are suitable for heavy loads and higher walking speeds.

Their structure is particularly stable. In order to partly withstand high loads, casters with two wheels (double casters) are also used in this area. Casters with damping springs are especially suitable for vibration-free transportation.

Typical uses include shelf trucks and industrial trucks, assembly systems and transportation systems.

According to DIN EN 12532, the bearing capacity test is carried out at a speed of 4 km/h, or at a higher speed in accordance with DIN EN 12533, the test is carried out on a rotating plate:

The most important inspection conditions are in accordance with DIN EN 12532:

• Speed: 4 km/h

• Temperature: Temperature: +15°C to +28°C

• Hard horizontal wheels and obstacles, the height of the obstacles is as follows:

Wheel with soft tread, 5% of wheel diameter (hardness <90°Shore A)

Wheel with hard tread, 2.5% of wheel diameter (hardness ≥90°Shore A)

• The test time is 15000*single wheel circumference when crossing obstacles at least 500 times

• Pause time: 1 minute maximum after every 3 minutes of walking time

The most important inspection conditions refer to the regulations of DIN EN 12533:

• Speed: 6 km/h, 10 km/h, 16 km/h, 25 km/h (standard: maximum 16 km/h)

• Temperature: Temperature: +15°C to +28°C

• Hard horizontal wheels and obstacles, the height of the obstacles is as follows:

Wheel with soft tread, 5% of wheel diameter (hardness <90°Shore A)

Wheel with hard tread, 2.5% of wheel diameter (hardness ≥90°Shore A)

• Test time: The required number of crossing obstacles is equivalent to five times the wheel diameter (mm).

• Pause time: 1 minute maximum after every 3 minutes of walking time
